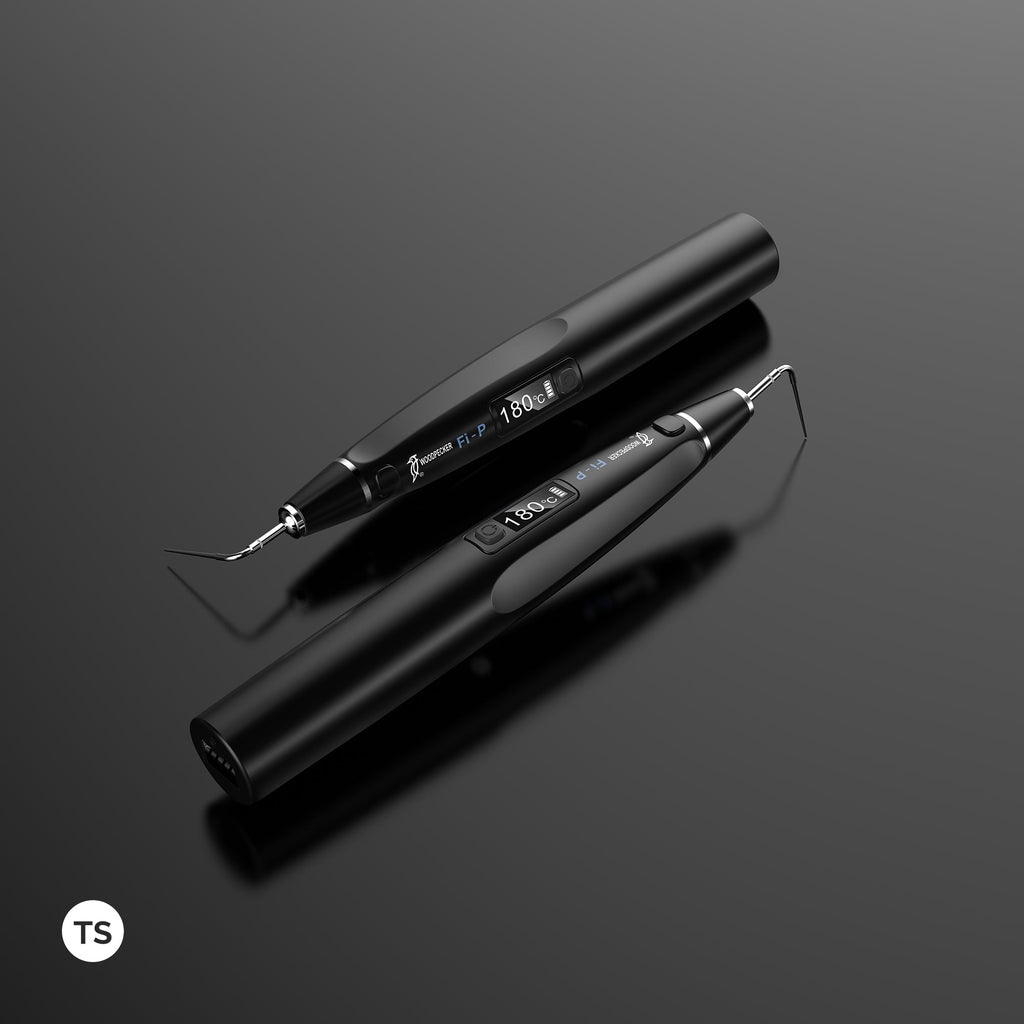

Woodpecker Down pack obturation pen for gutta percha and intra-canal heating of irrigants.

Click here to find out more about the Fi-P.

Softening function

Soften root canal filling material (gutta-percha) during the root canal filling operation.

Diffusion function

Diffuse the gutta-percha/sealer to the lateral canals and the apical part of the root canal.

Cutting function

Cutting the gutta-percha.

Pressing function

All root canals, including the lateral root canal, are optimally filled by heating and vertical extrusion.

Heating function

The sodium hypochlorite can be heated to increase the speed of reaction. Contact us after purchase for clinical videos.

Cauterising function

Minor gingival manipulation can be done during deep marginal elevation. Contact us for clinical videos aftet purchase.

FREE 4 downpack tips with each order: 40/04, 45/04, 55/06, 55/08.

The 35/04 is also a very useful tip.


Fi-P Features

• Wireless, ergonomic design.

• Ambidextrous accessible.

• Single button for ease of use.

• Quick heating within 0.2s.

• Safety automatic shut off after 10 seconds.

• Reduced waiting time.

• 0.35mm pre-bend tip.

• Improved penetrability into the narrow root canal.

• 4 hour battery life.

• High precision temperature control.

• Pre-set working temperatures for compatibility with many different GP.

• Smooth cutting of GP due to high-efficiency conversion system.

Technical Specifications

Classification: Class II (AC/DC power adaptor)

Available temperatures: 150ºC, 180ºC, 200ºC, 230ºC

Charging time: 2.5 hours (3 hours recommended for first time charging)

Battery life: 1500 x 10 seconds working time. (~4 hours)

Power input: AC100V-240V, 50/60Hz, 0.8mA

Power output: DC15V/1.6A

Battery capacity: 2000mAh

Device size: 23.8mm x 158.3mm x 23.8mm

Charging dock size: 75.5mm x 149.7mm x 62.6mm

Device weight: 80g

Charging dock weight: 195g

Power adaptor weight: 167g

Storage conditions:

Temperature: -20ºC to 50ºC

Humidity: 10% to 93%

Pressure: 70kPa to 106kPa

Usage conditions:

Temperature: -20ºC to 50ºC

Humidity: 10% to 93%

Pressure: 70kPa to 106kPa
